Light Panel Basic
Custom backlit LED panel

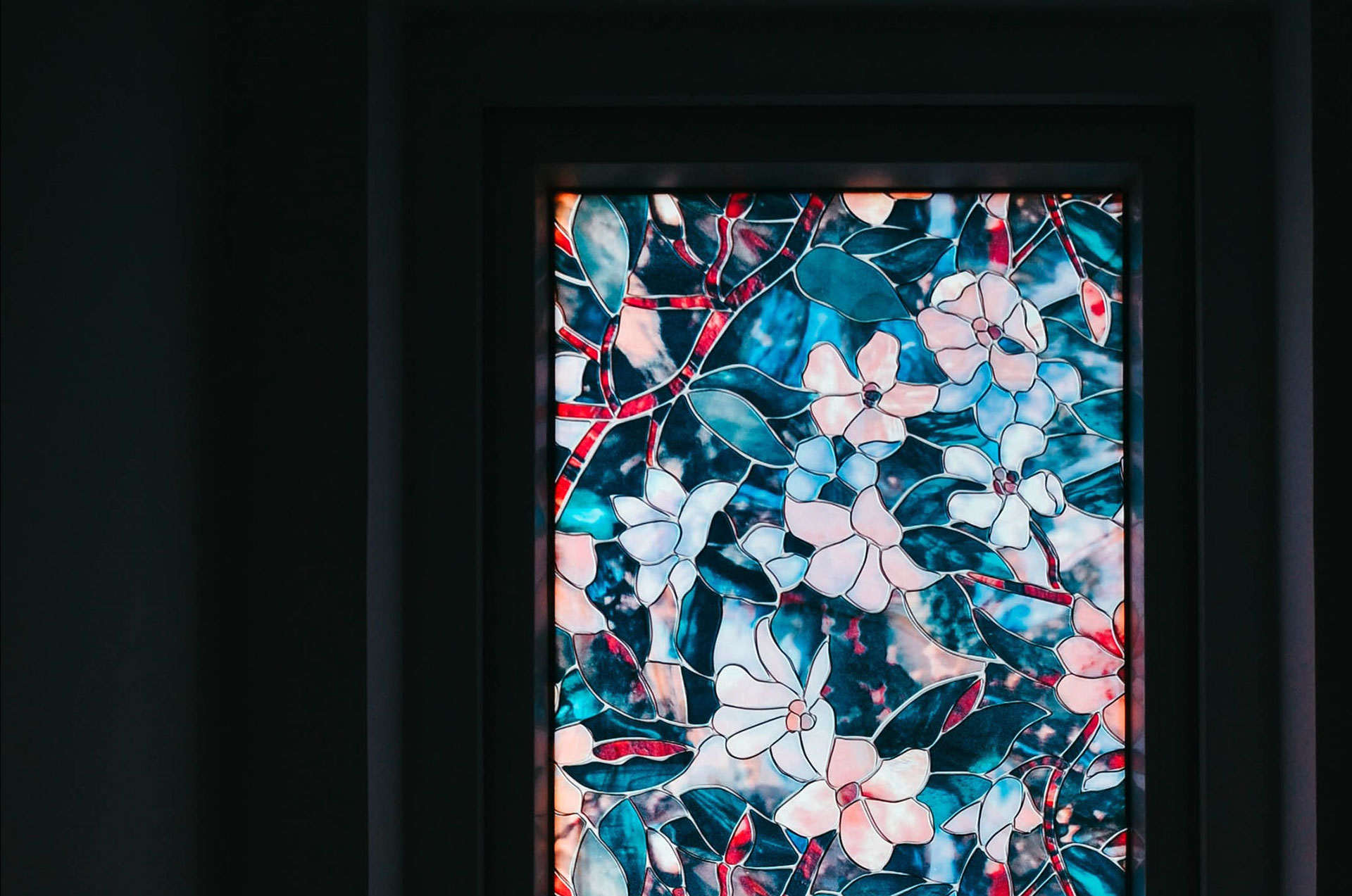

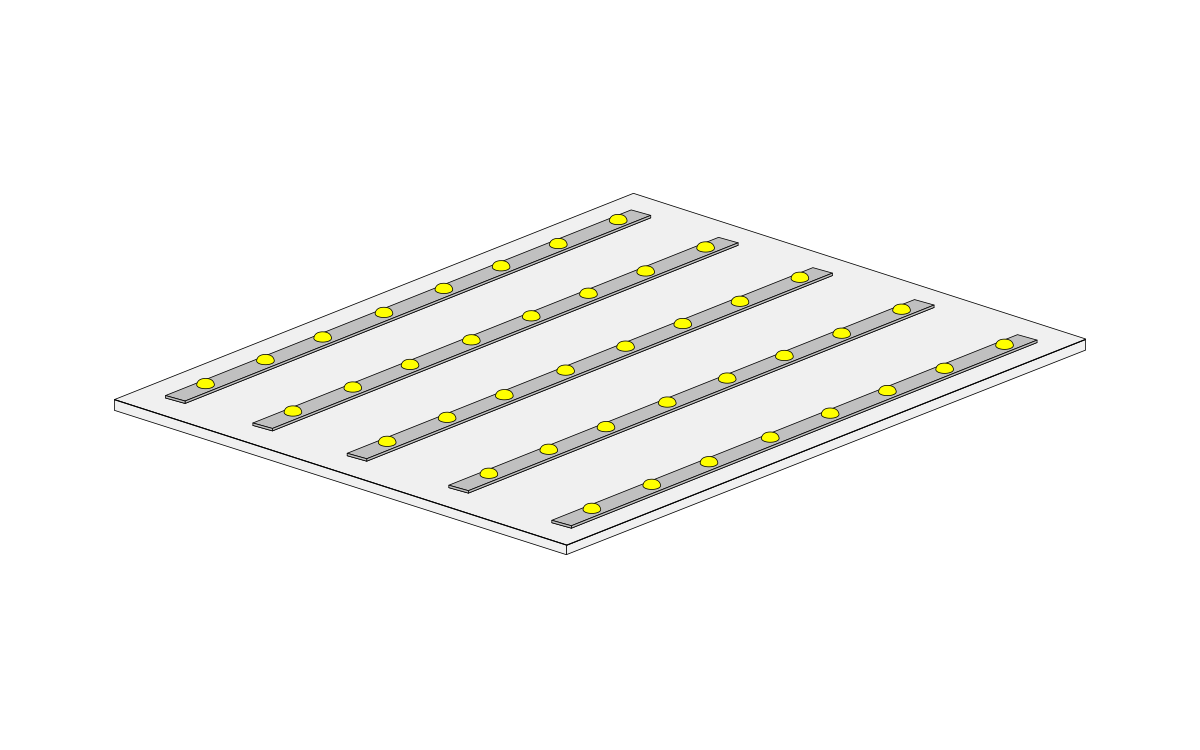

This is a light panel where the LED modules are arranged on the composite aluminum back support, with a thickness of only 10 mm; these features makes it particularly suitable for interior backlighting. The distance between one module and another is determined by the space between this light source and the surface to be backlit.
Sectors: Architecture, Nautical, Horeca and Retail Contract, Furnishings, Marble makers, Displays, Lighting,
Illuminated signs.
Applications: Luminous screens for backlighting, lighting bodies, furnishing complements and accessories, light boxes for retail
Electrical features
Electrical power: 24 V DC
Energy consumption: da 30 W/mq a 80 W/mq
Color temperature: 3000 – 6000 K, RGB, RGBW, Tunable White
Dimmability: DALI, PWM, DMX, 1-10 V, 0-10 V
Luminous flux: 1500-8000 lm/m2
Mechanical features
Thickness: 10 mm
Dimensions: custom
Weight: from 8 kg/m2
Materials: Aluminium
IP grade: IP40
General features
Use environment: Indoor, outdoor (ceiling, wall)
- Low maintenance
- Dimmable
- High energy saving
- Simple installation
- Uniformly distribute bright
- Customized dimensions
- Product for indoor/outdoor use
Certified product
Cross-section
Polar diagram
